Performance and Features

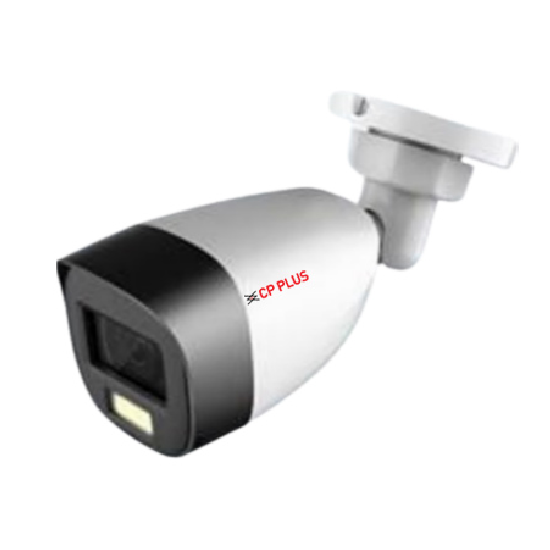

CP-GPC-TA24PL2C-SE 2.4MP Full-color Guard+ Bullet Camera - 20Mtr.
Rs 1999.00 ₨
2999.00
33% off
Availability: instock
- 1/2.8" 2.4MP CMOS Image Sensor (0.9071 centimetres)
- Max 25/30fps@2.4MP
- DWDR, 2D-DNR, AWB, AGC, BLC
- 3.6mm Fixed lens (2.8mm Optional)
- Illumination Distance of 20 Mtrs, IP67
- Support 24/7 color Imaging
- Support Built-in Mic
- CVI/CVBS/AHD/TVI switchable
| Image Sensor | 1/2.8" 2.4MP CMOS (0.9071 centimetres) |
| Minimum Illumination | 0.01Lux/F1.6, 0 Lux white light on |
| Lens | 3.6mm (2.8mm Optional) |
| Max Aperture | F1.6 |
| Lens Type | Fixed-focal |
| DNR | 2D-NR |
| DORI Distance | 2.8mm: 43.9m (Detect) 17.5m (Observe) 8.8m (Recognize) 4.4mm (Identify) 3.6mm: 55.2m (Detect) 22.1m (Observe) 11.0m (Recognize) 5.5mm (Identify) |
| Close Focus Distance | 2.8mm: 0.7m ; 3.6mm: 1.2m |
| Angle of View | 2.8mm: 126.2° × 106° × 56.5° (diagonal × horizontal × vertical) 3.6mm: 103.6° × 86.9° × 46.3° (diagonal × horizontal × vertical) |
| White Balance | Auto/ Manual |
| Back Light Compensation | BLC/ DWDR |
| Shutter Speed | PAL: 1/25~1/100000s NTSC: 1/30~1/100000s |
| Iris | Fixed |
| Gain Control (AGC) | Auto/Manual |
| Privacy Mask | Off/On (8 area, rectangle) |
| Audio | Built-in Mic |
| Video Streaming | CVI: PAL: 1080P@25fps; 720P@25fps; NTSC: 1080P@30fps; 720P@30fps; AHD: PAL: 1080P@25fps; NTSC: 1080P@30fps TVI: PAL: 1080P@25fps; NTSC: 1080P@30fps; CVBS: PAL: 960H; NTSC: 960H |
| Illumination Distance | IR Distance of 20 Mtr. |
| Operating Temperature | -40°C ~ +60°C (-40°F to 140°) |
| Humidity | <95% RH (non-condensation) |
| Storage Temperature | -40°C ~ +60°C (-40°F to 140°) <95% RH (non-condensation) |
| Power Source | 12V DC ±30% |
| Power Consumption | Max 3.1W (12V DC, White Light on) |
| Weatherproof Standard | IP67 |
| Casing | Plastic |
| Dimension | 161.3 mm × 69.7 mm × 70.0 mm |
| Additional features | |
|---|---|
| Value 1 | 21 cm |
| Value 2 | 700 gr. |
| Value 3 | 10 person |
| Value 4 | 14 cm |
| Value 5 | plastic |
