Performance and Features

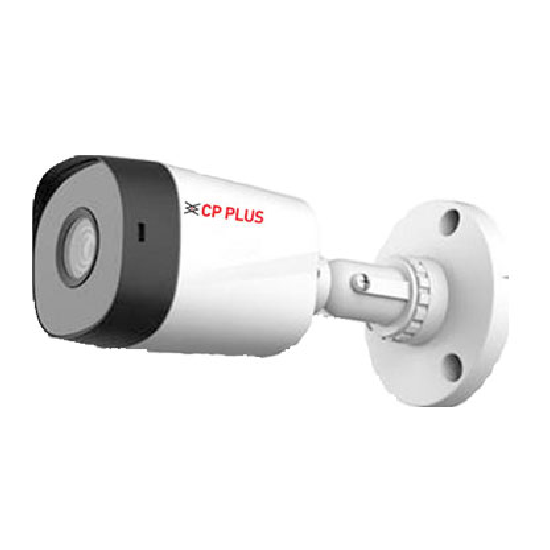

CP-URC-TC24PL2C-V3 2.4MP IR Bullet Camera - 20Mtr.
Rs 1350.00 ₨
1999.00
32% off
Availability: instock
- 1/2.7” 2.4MP CMOS Image Sensor (0.9407 cm)
- Max 25/30fps@2.4MP
- DWDR, Day/Night (ICR), 2D-DNR, AWB, AGC, BLC, HLC
- 3.6mm fixed lens (2.8mm optional)
- IR Range of 20 Mtrs. , Smart IR, IP67
- Support Built-in Mic
- OSD Menu, control over coaxial cable, 2D-DNR
- HD, SD and Two Analog format Output switchable
| Image Sensor | 1/2.7” 2MP CMOS Image Sensor (0.9407 cm) |
| Minimum Illumination | 0.04Lux/F2.0, 30IRE, 0Lux IR on |
| Shutter Speed | PAL: 1/25s–1/100000s ; NTSC: 1/30s–1/100000s |
| Lens | 3.6mm (2.8mm optional) |
| S/N Ratio | More than 65dB |
| Lens Type | Fixed lens/ Fixed Iris |
| Mount Type | Board-in |
| Max Aperture | F2.0 |
| Angle of View | 2.8mm; D:120° H:100° V:53° ; 3.6mm: D:99° H:83° V:44 |
| Close Focus Distance | 3.6mm– 0.8m ; 2.8mm– 0.6m |
| DORI Distance | 2.8mm: D:46.9m; O:18.8m; R:9.4m; I:4.7m 3.6mm: D:53.7m; O:21.5m; R:10.7m; I:5.4m |
| Back Light Compensation | BLC/HLC/DWDR |
| White Balance | Auto/ Manual |
| Video Streaming | 2.4MP@25/30fps, 25/30/50/60fps@720P |
| Video Output | 1-channel BNC high definition video output/ CVBS video output (Can switch) |
| ICR | Auto (ICR)/Manual |
| Audio | Built-in Mic |
| IR | IR Range of 20 Mtr., Smart IR |
| IR Control | Auto/ Manual |
| OSD Menu | Multi-language |
| Casing | Plastic |
| Operating Temperature | -40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH |
| Storage Temperature | -40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH |
| Weatherproof Standard | IP67 |
| Power Source | 12V DC ±30% |
| Power Consumption | Max 2.7W (12V DC, IR on) |
| Dimension | 70mm x 70mm x 149mm (2.76 |
| Weight | 0.14Kg. |
| Additional features | |
|---|---|
| Value 1 | 21 cm |
| Value 2 | 700 gr. |
| Value 3 | 10 person |
| Value 4 | 14 cm |
| Value 5 | plastic |
