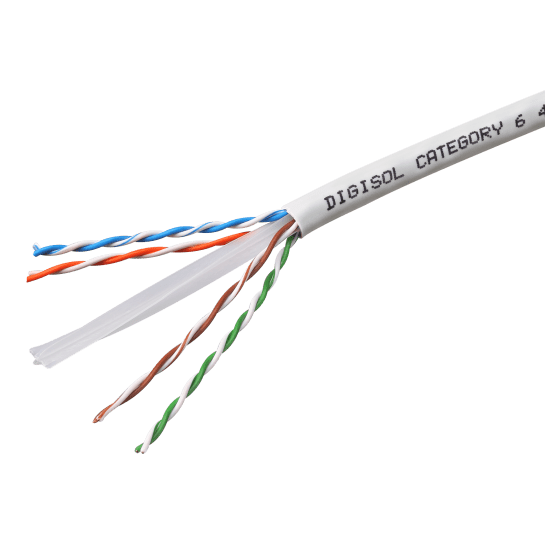

Digisol DGC-SC6U4F-3GB Cat 6 Solid Cable 305 meter

 DIGISOL Cat6 4 Pair UTP Cable has been designed for horizontal cabling networks for transmission of high speed data, digital and analog, voice and video signals over LANs. Supports gigabit ethernet (1000 Base-T) standard suitable for noisy environments, high EMI interference surroundings and complies to the requirement ofANSI/TIA-568-C.2 and ISO/IEC 11801. Performance verified upto 250MHz. UL Listed and ETL Verified. Introduction:- Electrical Properties:- Conductor Resistance : ≤ 9.38 Ω/100m Max. Mutual Capacitance : < 5.6 nF/100m Max Resistance Unbalance : 5% Max Capacitance Unbalance : Max. 330 pF/100m Dielectric Strength : 2.5 KVDC for 2 seconds Delay Skew : < 45ns Impedance : 100 ± 15 Ω @ 100 Mhz Current Rating : 1.5 A Max. Operating Voltage : 72 V Color Code:- Pair Number : Color 1 - 2 : White-Orange Stripe and Orange 3 - 6 : White-Green Stripe and Green 4 - 5 : White-Blue Stripe and Blue 7 - 8 : White-Brown Stripe and Brown Standards : UL Listed ETL Verified to ANSI/TIA-568-C.2 ISO/IEC 11801 RoHS Compliant White-Blue /Blue White-Brown /Brown White-Orange /Orange Conductor Insulation Rip Cord FRPVC Sheath White-Green /Green E487261 • Better cable material properties and design • Performance verified upto 250 Mhz. • Available in FRPVC jacket sheath • Packaged in an easy-to-pull box for easier installation (305m length)
