Performance and Features

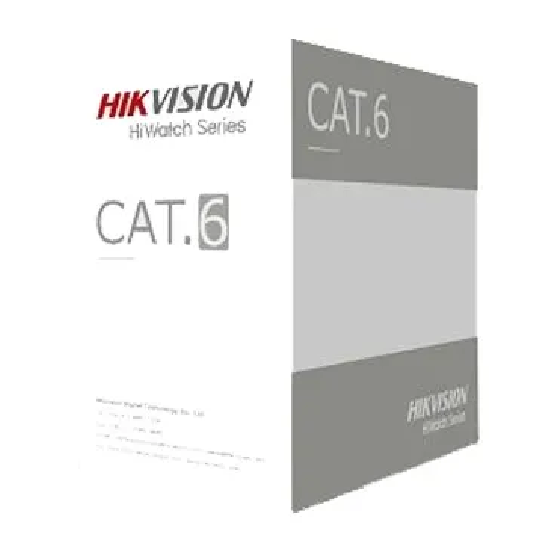

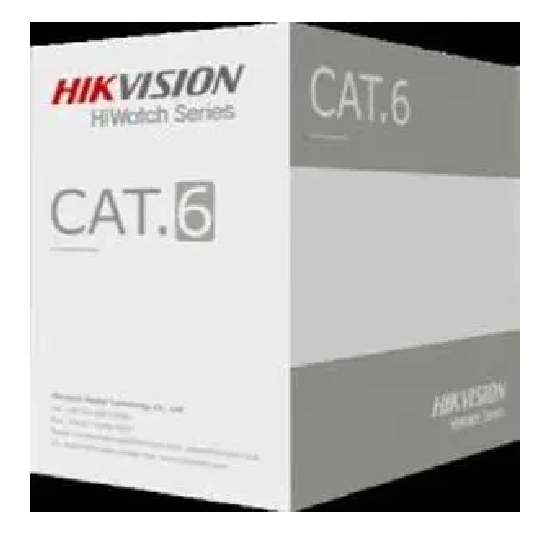

Hikvision HWC-6AU-W CAT6 Cable 305 Mtr Bundle
Rs 5640.00 ₨
9999.00
43% off
Availability: instock
- UTP CAT 6, SOLID-Bare Copper, 305 meters
0.585mm, CCA - Transmission distance up to 85m
- CPR Certificate white
-
Conductor Material, -, Nom.O.D.(mm), CCA（Copper, content：27%）-, 0.585, Up, :, +0.01, Down, :, -0.01
Insulation Material, -, Solid, HDPE, Diameter, -, 1.05±0.05mm
Sheath Thickness, 0.50±0.05, mm, External, O.D., 6.0±0.30, mm, Surface, Clean, Frap, Satiation, Material, FR-PVC(complies, RoHS), Color, White, RAL9003
Core Color 1, Blue, &, White/, Blue, 2, Orange, &, White/, Orange, 3, Green, &, White/, Green, 4, Brown, &, White/, Brown
Packing length (305±1.5)m
Sheath Physical Properties Before, Aging, Tensile, Strength, (Mpa), ≥13.5, Elongation(%), ≥150, Aging, Period(℃×hrs), 100℃×24h×7d, After, Aging, Tensile, Strength(Mpa), ≥12.5, variance, ratio:±25%, Elongation(%), ≥125, variance, ratio:±20%
electrical-characteristics-20℃ 1.0-100.0MHz, Impedance(Ω), 100±15, 100, -, 250MHz, Impedance(Ω), 100±25, 1.0-100.0MHz, Delay, Shew, (ns/100m), ≤45, DC, ResistanceΩ/100m), max, 12, DC, Conductor, Resistance, Unbalance(%), max, 2
.
